Steel Palisade Fence

Steel Palisade fence, also known as European Style fence. In some countries people may not familiar with this type of fence system, but many countries have already been using it to replace the traditional brick walls and heavy wire mesh fence, making the living environment beautiful, comfortable and fresh. “Palisade” is also called “Security Defense assembled pales”, it comes into people’s life because the pursuit of a better environment. The most common specifications for Steel Palisade fence is 1.8M high and 2.5M wide. Preservative treatment of this type of fence includes: electrostatic galvanized, hot dip galvanized, polyester powder coated, PVC coated, etc. Powder coated and PVC coated Steel Palisade fence due to its low price and durability are very popular among customers. Durable, strong corrosion-resistant, long service life are some of the characteristics of this type of fence system. Steel Palisade fence system can be custom made upon request. This fence system is beautiful and practical, there are no mesh and frame structures, it makes the transportation and installation very easy. And the system is adaptable to different project scenarios. Steel Palisade fence is widely used at railway living areas. Some features of steel palisade fence system lies in that they are attractive and durable, of broad vision, having various colors, of high strength and good rigidity.

Steel Palisade Fence

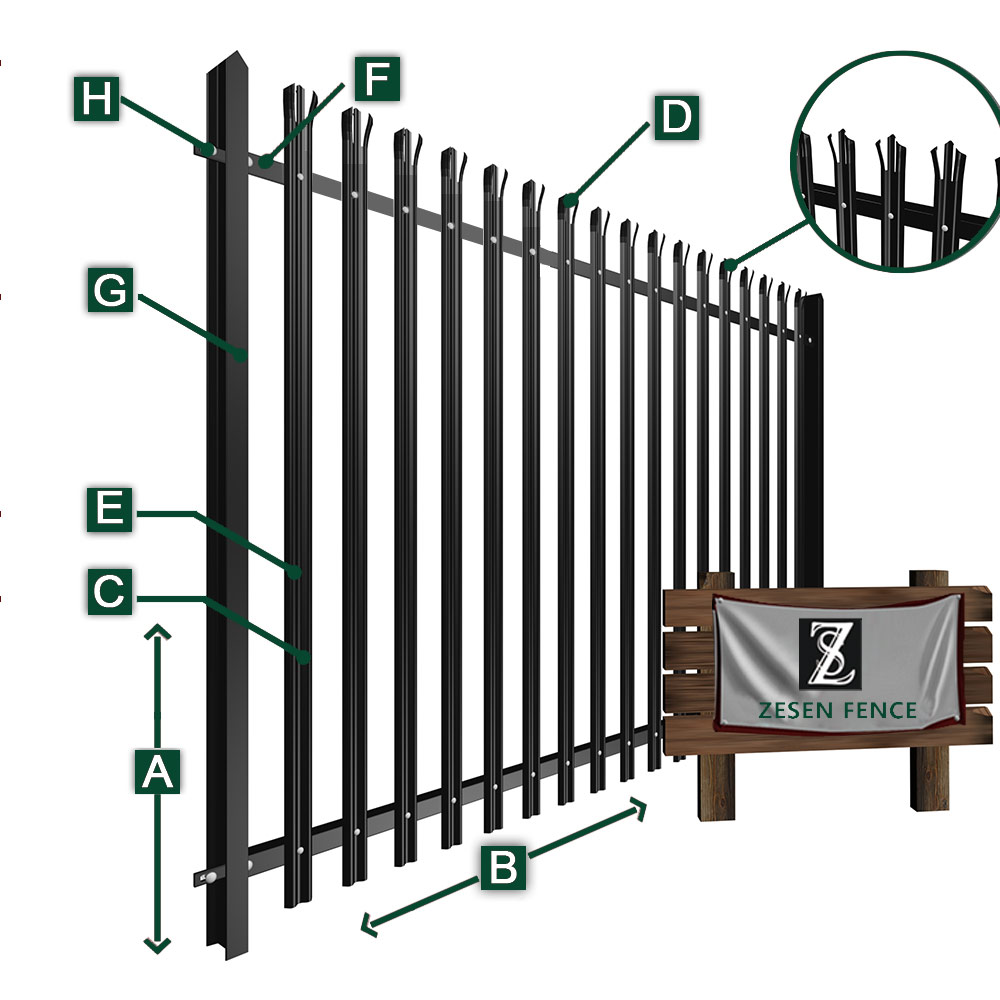

AHEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm / 2400mm

BWIDTH: 2750mm / 3050mm

C PALE TYPE: W-profile / D-profile / Angle Steel

DPALE TOP: Single Pointed / Triple Pointed / Round Top / Square Top

EPALE THICKNESS: 1.5mm / 2.0mm / 2.5mm / 3.0mm

FHORIZONTAL RAIL: Angle Steel 40mm*40mm*4.0mm / 45mm*45mm*4.5mm / 50mm*50mm*5.0mm

G POST: 100mm*55mm / 102mm*44mm(IPE Post)

HCLAMP: Fish Plate

ISURFACE: Hot Dipped Galvanized (505g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)

NOTES:

1、Height: the height of the steel palisade fence.

2、Width: the distance between two IPE posts, measure from center to center.

3、Pale Type: shape of the steel palisade fence pale, normally W pale or D pale.

4、Pale Top: shape of the steel palisade fence pale top, normally triple pointed or single pointed.

5、Pale Thickness: wall thickness of the steel palisade fence pale.

6、Horizontal Rail: usually use angle steel to be the rail of steel palisade fence, its function is connecting the pales and post.

7、IPE Post: also called RSJ post.

8、Fish Plate: small tools for connecting IPE post and horizontal rail, it use as a clamp.

9、Hot Dipped Galvanized: dip the fence in to a container that is full of liquid zinc, to prevent the steel palisade fence from getting rusty.

10、Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the steel palisade fence from getting rusty.
