Welded Mesh Fence

Welded mesh fence is one of the best-selling items of Zesen Fence. With this product Zesen Fence brings customers a fence solution that reduces the project budget and offers a fascinating-look and security-ensured fence choice. Welded mesh fence owns its popularity to its beautiful design and security nature. Welded mesh fence panels are made of high grade steel wires. Welded together by parallel horizontal wires and vertical wires to form a strong panel. With proper size of the triangle bends and suitable colors of powder coating with a variety of color choices, such as yellow, green, red, it makes this product have a unique aesthetic effect. With different color combinations of posts and mesh panels it makes the fence very eye-pleasing. And the posts usually come with plate flanges and expansion bolts which make the installation very fast. Welded mesh fence are usually used in combination with peach post, square post or round post. Customers can choose one of them by their preference. Welded mesh fence are already widely used in highways, roads, railways, airports, factories, buildings, residential areas, ports, urban green spaces, gardens, flower beds and greenland. Welded mesh fence have such features which are high strength, good rigidity, good-looking in appearance, wide view, simple installation.

Welded Mesh Fence

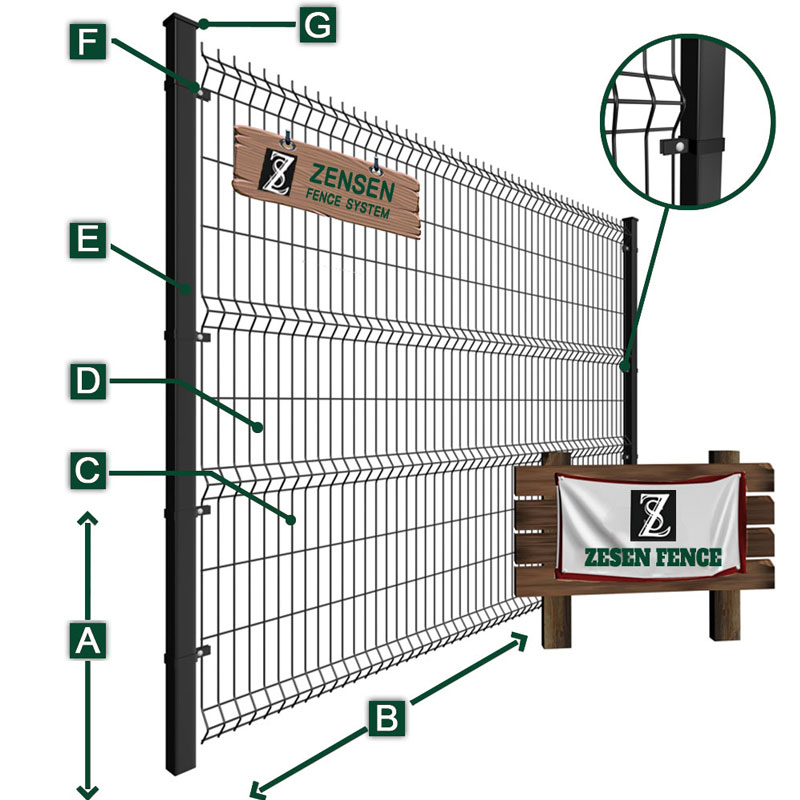

AHEIGHT: 1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm

BWIDTH: 2000mm / 2500mm

CWIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

DMESH SIZE: 200mm*50mm / 200mm*55mm

EPOST: square post (60mm*60mm), peach post, swallow tail post(60mm)

FCLAMP: metal clamp / anti-UV plastic clamp / no clamp

GPOST CAP: metal cap / anti-UV plastic cap

HSURFACE: Hot Dipped Galvanized (505g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral) Electric Galvanized + PVC Coated

NOTES:

1、Height: the height of the fence panel.

2、Width: the distance between two posts, measure from center to center

3、Wire Thickness: diameter of the wire

4、Peach Post: special post type, looks like a peach. Peach post do not needs clamps to set up the fence panel.

5、Hot Dipped Galvanized: dip the fence in to a container that is full of liquid zinc, to prevent the welded mesh fence from getting rusty.

6、Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the welded mesh fence from getting rusty.

7、Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, then dip the fence in to a container that is full of liquid PVC, to prevent the welded mesh fencing from getting rusty.
