Euro Fence

Euro Fence, also called Holland fence in China. Euro fence is a kind of most common type of economic fencing in Chinese market. Because its price is competitive, normally used for Highway or boundary project with big quantity. There are two main parts to form the euro fence. First part is the fence panel roll. The roll packing is different from other fence because of its wire thickness is thinner than other kind of welded fence. It’s soft enough for rolling up. Second part is the swallow tail post system. The swallow tail post is a special type of post designed for euro fence, connecting the panel with “U” shape clips. Several years ago, the production process of euro fence is separated by several steps until the automatic production machine came out in 2004. Right now the production process and ability was improved to higher level. Welding process, bending process, PVC coated process and rolling process of the euro fence can be done in only one machine. The production line of euro fence comes to be very short and easy. Euro fence is wildly used in Chinese market such as highway, boundary, railway protection, etc. With the benefit of economic, high production ability and easy packing. It will be accepted by other market out of China soon.

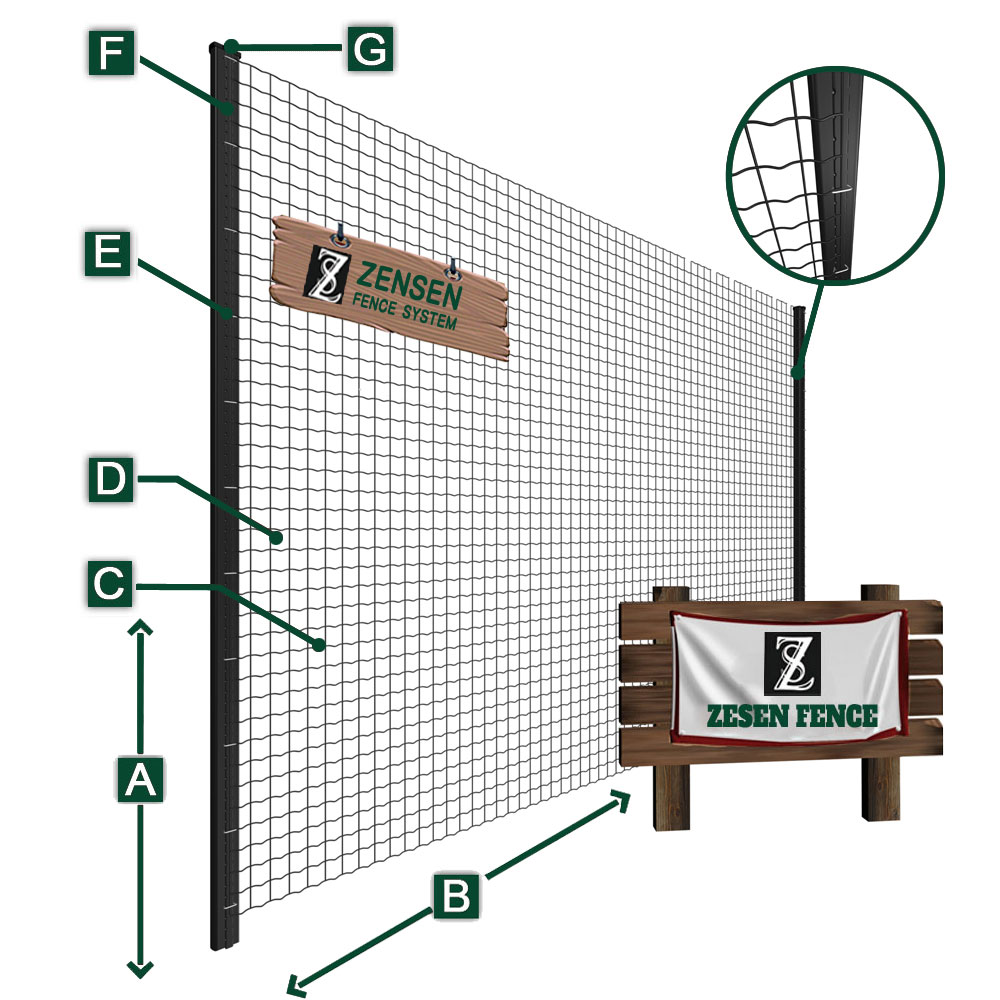

Euro Fence

A HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

BWIDTH: 2500mm / 3000mm

CWIRE THICKNESS: 2.0mm / 2.5mm / 3.0mm / 3.5mm

DMESH SIZE: 50mm*50mm / 100mm*50mm

ECLAMP: Metal U-clamp

FPOST SIZE: swallow tail post (48mm / 60mm)

GRAIN CAP: Anti-UV PP Rain Cap

HSURFACE: Electric Galvanized + PVC Coated (All colors in Ral)

NOTES:

1、Height: the height of the euro fence panel.

2、Width: the distance between two swallow tail posts, measure from center to center.

3、Wire Thickness: diameter of the euro fence wire.

4、Swallow Tail Post: a special type of post looks like swallow tail, normally for euro fence post.

5、Metal U-Clamp: a “U” shape clamp for setting the panel up to the swallow tail post.

6、Pre – Hot Dipped Galvanized: the wire surface treatment is galvanized before welding.

7、Electric Galvanized + PVC Coated: galvanized the wire material first, then do the PVC dipped coating after welding the euro fence panel.
