BRC Fence

BRC fence is a kind of welded wire fence in Zensen fence product series. BRC fence also called roll top fence in some region. Its main market is in Singapore and other southeast Asia countries. Chinese supplier called the BRC fence to be Korean fence because there also have a big market of BRC fence in South Korea. The production process of BRC fence is similar with other welded fence. First to welded the low carbon steel wire to be designed size panel, then need a special bending machine to make the rolling top and bottom. The surface treatment of the BRC fence panel and post is in the end step of production process. Special “V” shape clips is only designed for BRC fence, but some engineer prefer to use V clips to other kind of fencing products with self drilling bolts, because of the V clips is a kind of economic and convenient connection solution in some ways. BRC fence usually be used in parking area, park or some other area in the city. Some engineer designed the BRC fence used to be as temporary protection such as in a building floor during construction. Zensen provide all kinds of BRC fence with different specs. Need more information? Contact us!

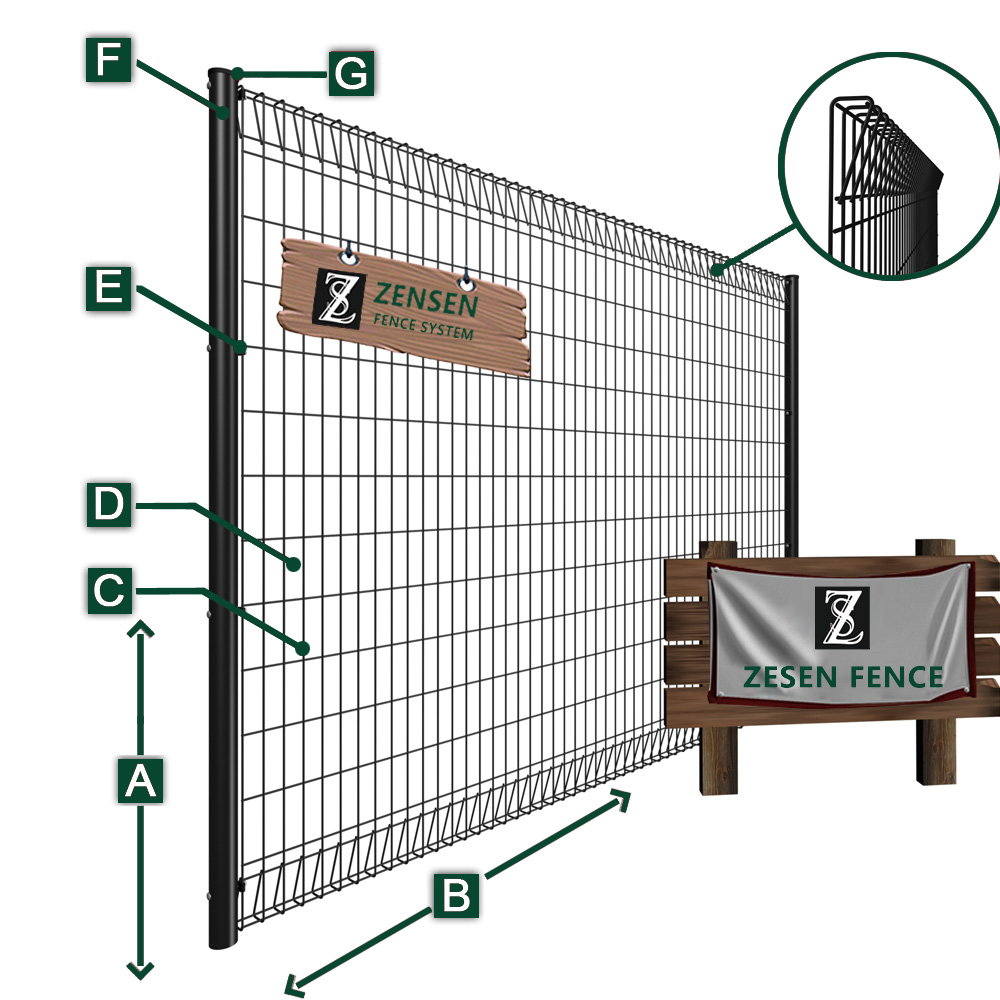

BRC Fence

AHEIGHT: 1200mm / 1350mm / 1500mm / 1650mm / 1800mm / 1950mm / 2100mm / 2250mm

BWIDTH: 1500mm / 2000mm / 2500mm

CWIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

DMESH SIZE: 150mm*50mm

ECLAMP: Metal V Clamp / Anti-UV Plastic Clamp

FPOST: Round Post (dia 50mm / 60mm) Square Post (60mm*60mm)

GPOST CAP: Metal Cap / Anti-UV Plastic Cap

HSURFACE: Hot Dipped Galvanized (505g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)

NOTES:

1、Height: the height of the euro fence panel.

2、Width: the distance between two swallow tail posts, measure from center to center.

3、Wire Thickness: diameter of the euro fence wire.

4、Swallow Tail Post: a special type of post looks like swallow tail, normally for euro fence post.

5、Metal U-Clamp: a “U” shape clamp for setting the panel up to the swallow tail post.

6、Pre – Hot Dipped Galvanized: the wire surface treatment is galvanized before welding.

7、Electric Galvanized + PVC Coated: galvanized the wire material first, then do the PVC dipped coating after welding the euro fence panel.
