Chain Link Fence

Chain Link fence has other names like diamond mesh fence, cyclone fence.The chain link wire mesh is formed by twisting wire raw material together. There are also two kinds of edges which are folded edge and twisted edge. The raw materials can be galvanized steel wire or PVC coated steel wire. The latter one can have custom colors and the most popular one is dark green. Chain Link fence are widely used in road, railway and highway fencing projects. And this fencing product is also used for interior decoration, fowl and small animal raising like chickens, ducks, geese, rabbits and also zoo fencing projects. Other scenarios using Chain Link fence are machinery and equipment protection, sports venues, green belt. Sometimes people use Chain Link fence as gabions by forming a box shape with it and filling it with stones. It can also be used for the protection and support of seawalls, hills, bridges and reservoirs, and other civil works. It is a great material for flood control. Besides, Chain Link fence can also be used for handicraft material, warehouses protection, cold storage protection and building site protection, and so on. As you can see, Chain Link fence really does a great job for so many fencing scenarios. It’s cost-effective and quite good-looking. It’s an pretty ideal fencing choice for everybody.

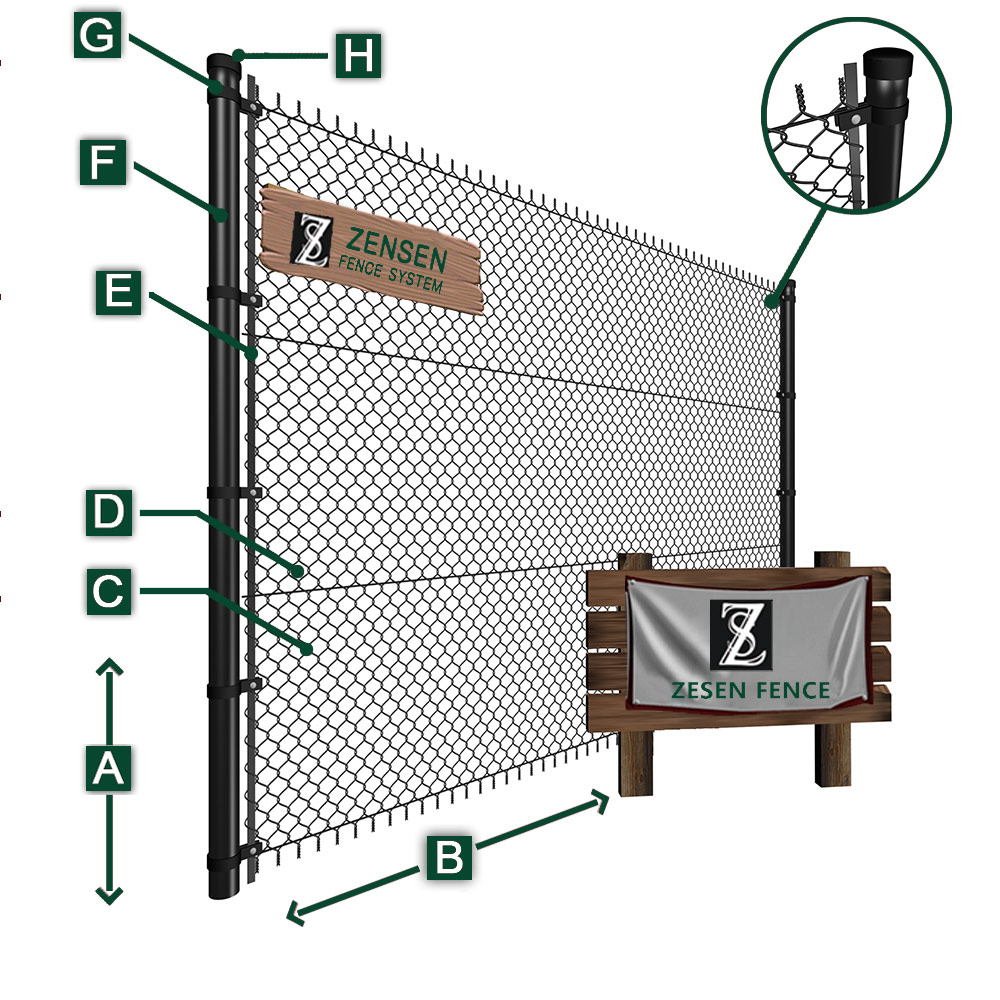

Chain Link Fence

AHEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

BWIDTH: 2000mm / 2500mm / 3000mm

CWIRE THICKNESS: 2.5mm / 3.0mm / 3.5mm / 4.0mm / 4.5mm / 5.0mm

DMESH SIZE: 40mm*40mm / 50mm*50mm / 75mm*75mm

E FLAT BAR: 25.0mm*5.0mm

FPOST: Round Post (dia 42mm / 48mm / 50mm / 60mm / 75mm)

GCLAMP: Metal Clamp

HPOST CAP: Metal Rain Cap / Anti-UV PP Cap

ISURFACE: Pre Hot Dipped Galvanized (100 / 200 / 250 / 280g/m²) Electric Galvanized + PVC Coated (All colors in Ral)

NOTES:

1、Height: the height of the chain link fence.

2、Width: the distance between two chain link fence posts, measure from center to center.

3、Wire Thickness: the diameter of the chain link fences wire after PVC coated.

4、Mesh Size: the edge length of the mesh

5、Flat Bar: a flat bar for making chain link mesh straight in vertical.

6、Post Cap: a small tool for covering on top of the post, in order to prevent the rain fall in to the post

7、Pre Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the chain link fences. The zinc layer of pre – hot dipped galvanized is lower than hot dipped galvanized.

8、Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, then use PVC coated layer outside to prevent the chain link fences from getting rusty.
