Gabion Basket

Recent years, we can always see the gabion basket. It is very common in the river, road side, bridge side, mountain slope, etc. The gabion basket from Skyhall Fence has other names like gabion box, gabion wall, gabion cage, stone cage,etc. Gabion basket is manufactured from 8×10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the Gabion is heavily Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm). The Gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter. Gabions shall be manufactured and shipped with all components mechanically connected at the production facility.

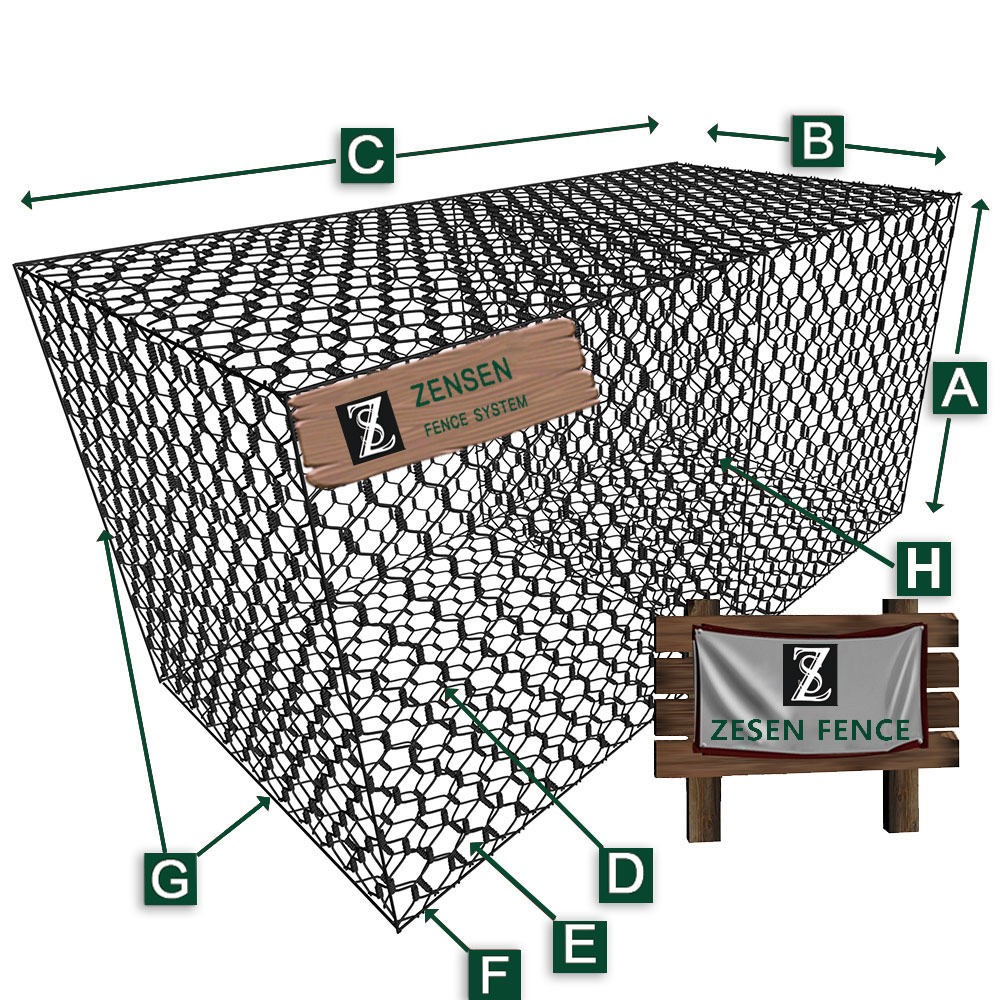

Gabion Basket

AHEIGHT: 500mm / 800mm / 1000mm / 1200mm / 1500mm

BWIDTH: 500mm / 1000mm / 1500mm / 2000mm

CLENGTH: 1000mm / 2000mm / 3000mm

DWIRE THICKNESS: 2.2mm / 2.4mm / 2.7mm

EMESH SIZE: 60mm*80mm / 80mm*100mm / 100mm*120mm

FLACING WIRE THICKNESS: Anti-UV Plastic Clamp / Metal Clamp

GSELVEDGE WIRE THICKNESS: 3.0mm

HDIAPHRAGM

ISURFACE TREATMENT: Pre Hot Dipped Galvanized (100g/m²) Pre Hot Dipped Galvanized (200g/m²) Galfan Wire (Zinc & Aluminium Alloy) Electric Galvanized + PVC Coated (All colors in Ral) Electric Galvanized + PE Coated (All colors in Ral)

NOTES:

1、Height: the height of the gabion basket.

2、Width: the width of the gabion basket.

3、Length: length of gabion basket.

4、Wire Thickness: the diameter of gabion mesh.

5、Lacing Wire: low carbon steel wire to tie the separated gabion mesh to be basket.

6、Selvedge Wire: the diameter of the wire on the edge of gabion basket.

7、Diaphragm: a single piece of gabion mesh to separate the basket to several cells.

8、Pre – Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the gabion basket.

9、Galfan Wire: low carbon steel wire coated by zinc – aluminium alloy.

10、Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) + PVC coated low carbon steel wire before production.

11、Electric Galvanized + PE Coated: electric galvanized (zinc coating 8~12g) + PE coated low carbon steel wire before gabion basket production process.
