Field Fence

Field fencing is also a kind of popular fence for fields or agriculture. Its material selects the low carbon steel wire with pre-hot dipped galvanized, and with high zinc coating about 200g/m2. It is a type of very economical fence for the farm, orchard, fields, grasslands, forest zone …etc. The formation of the field fencing is automatic twist plait by the line wire and the cross wire. So the fencing mesh is knotted. And the spacing between the line wire is different, smaller spacing in the bottom of mesh panel, then the spacing become much more bigger than the the bottom one. To design like that is to protect the little rodents or animals from getting through. The field fencing post is to use the angle steel, to make holes on the angle steel, which is used to tie the fence panel with the post. And it can use the wooden stake to replace the angle steel. To fix the post and the fence panel together is using the galvanized wire. All in all, the formation of the field fencing is not complex, and it is also very economical and save the production cost. It is a quite good choice to choose the field fencing.

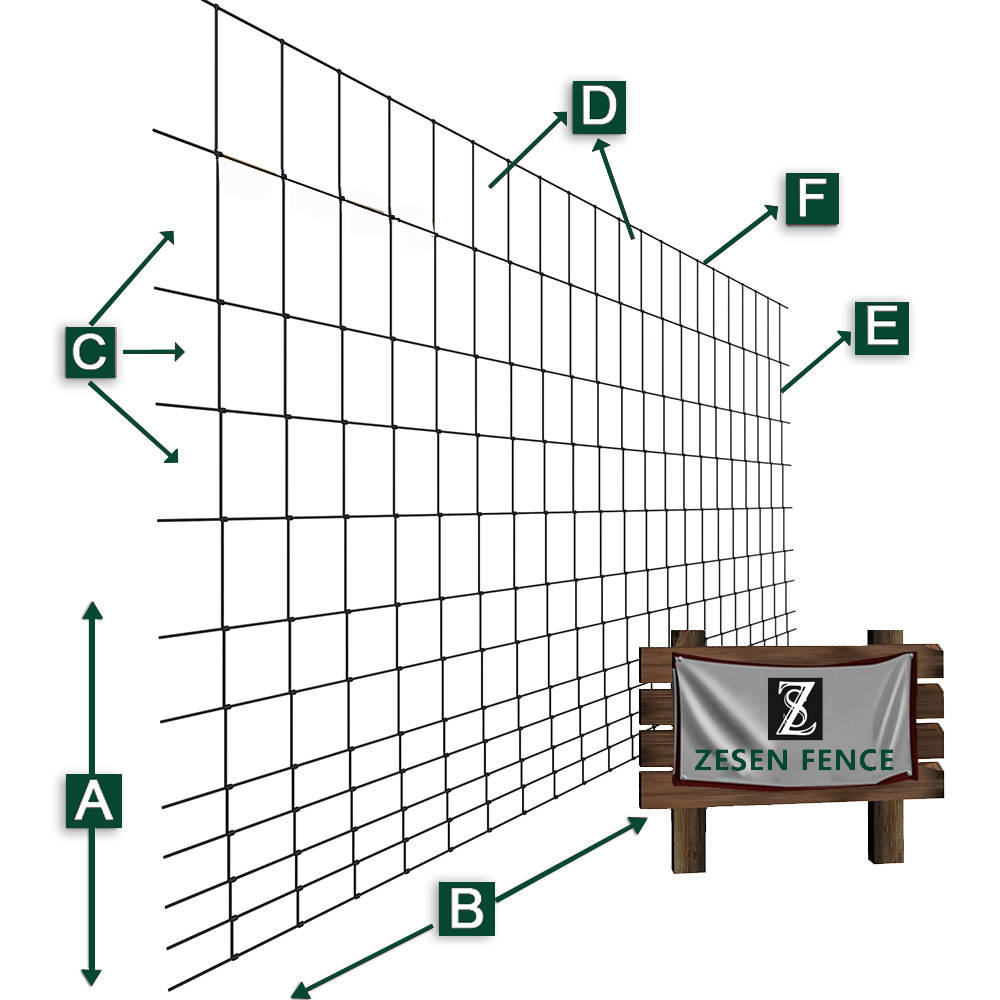

Field Fence

AHEIGHT: 900mm ~ 2200mm

BWIDTH: 25,000mm / 30,000mm / 50,000mm / 100,000mm

CHORIZONTAL WIRE SPACING: Bottom to Top: 3’’ / 3’’ / 3 1/2’’ / 4’’ / 4.5’’ / 5’’ / 5.5’’ / 6’’ / 7’’ / 8’’ / 9’’ / 9.5’’ / 10’’

D VERTICAL WIRE SPACING

EWIRE THICKNESS: 1.8mm / 2.0mm / 2.5mm / 3.0mm

F SELVEDGE WIRE THICKNESS: 2.5mm / 3.0mm

GSURFACE TREATMENT: Pre – Hot Dipped Galvanized (100g/m2) Pre – Hot Dipped Galvanized (200g/m2)

NOTES:

1、Height: the height of the field fencing.

2、Length: the length of the field fencing for per roll.

3、Wire Thickness: the wire diameter of the woven wire mesh.

4、Selvedge Wire: the diameter of the wire on the edge of field fencing.

5、Pre – Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the gabion basket.
