Barbed Wire Fence

Barbed wire fencing is a kind of economic products in Zensen security wire series. Also called barbed wire. Comparing with concertina razor wire, it’s more economic but a little bit less security. The production of bared wire fencing is all done by automatic machine. The machine will twist the barb on the core wire and then roll the barbed wire fencing to be a coil. This kind of machine runs very fast and production ability is very high. Barbed wire fencing specification always described by wire gauge (BWG) and feet or inch. Normally we use BWG wire gauge to say the wire thickness of the core wire and barb wire, make the inch unit to describe the barb spacing. There are two kind of strand for barbed wire fencing, single strand and double strand. Single strand is make a single wire to be the core wire of barbed wire fencing. Double strand type need to twist the two wires together to be the core wire. Pre-hot dipped galvanized is the most popular type of finish for barbed wire fencing. The market of barbed wire fencing is globally because it’s a kind of very common fencing products in the world. No matter in farmland, battle field or forest, we can see the barbed wire fencing a lot. If you want to find a cooperated barbed wire fencing supplier in China, please contact Zensen to talk more details.

Barbed Wire Fence

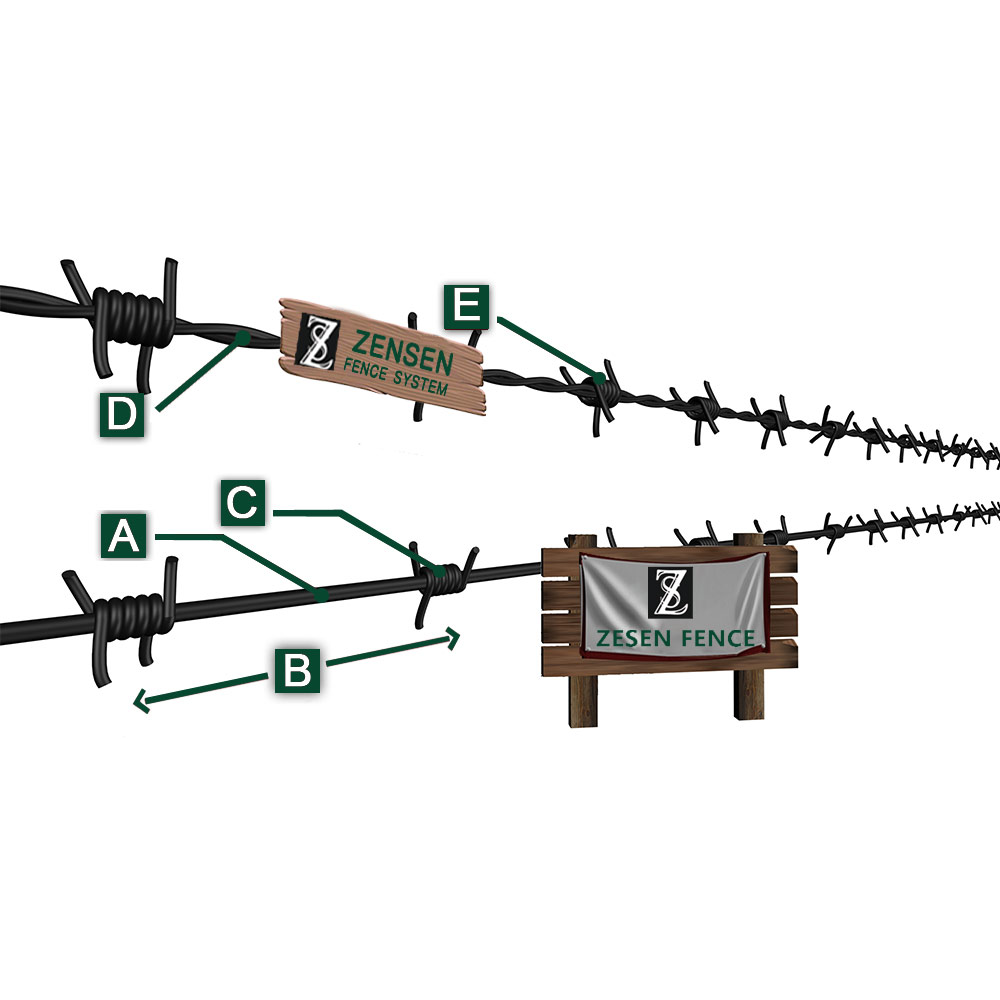

ACore Wire Thickness: #12 #12½ #13 #13½ #14 #14½ #15 #15½ (in B.W.G.)

B Barbs Spacing: 3” / 4” / 5” / 6”

CBarb Wire Thickness: #12 #12½ #13 #14 #14½ #15 #15½ (in B.W.G.)

DType: Single Strand / Double Strand / Concertina Barbed Wire

E Weight: 25kg/coil

FSURFACE: Pre Hot Dipped Galvanized (100g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)

NOTES:

1、Core Wire Thickness: the diameter of the core wire of barbed wire fencing.

2、Barbs Spacing: distance between two barbs.

3、Barb Wire Thickness: the diameter of the barb of barbed wire fencing.

4、Single Strand: only one line of core wire.

5、Double Strand: two strand of core wire twisted.

6、Weight 25kg/coil: normally the weight of barbed wire fencing is 25kg/coil, but we can also manufacture to clients’ specs about the coil weight.

7、Pre Hot Dipped Galvanized: the surface of barbed wire fencing material is already been galvanized before we start the production.

8、Electric Galvanized + PVC Coated: PVC wire to be the material of barbed wire fencing.
