Concertina Razor Wire

Concertina razor wire is a kind of razor wire. Another two kind of razor wire is flat type razor wire and razor wire mesh. Comparing with barbed wire fencing, concertina razor wire is a little bit more expensive, but the security function is better than barbed wire fencing. There are several different kind of razor blade type wildly used in the market, BTO-10, BTO-22, BTO-25, BTO-28, BTO-30, CBT-60 and CBT-65. The most common type is BTO-22, take more than 90% of razor wire market. Producing concertina razor wire also have a very high production ability. Need to punch the blade first before wrapping the core wire in it. Then rolling the razor wire to be designed outside diameter. Adding clips to make it to be concertina shape, and that is the reason for the name of concertina razor wire. During the packing process, workers need to press a lot of concertina razor wire coils to be a bundle to increase the loading capacity. Concertina razor wire is wildly used in the global market, but main market are Nigeria and Middle East. Most country prefer to make razor wire to be the country boundary wall and military zone because of its high security function.

Concertina Razor Wire

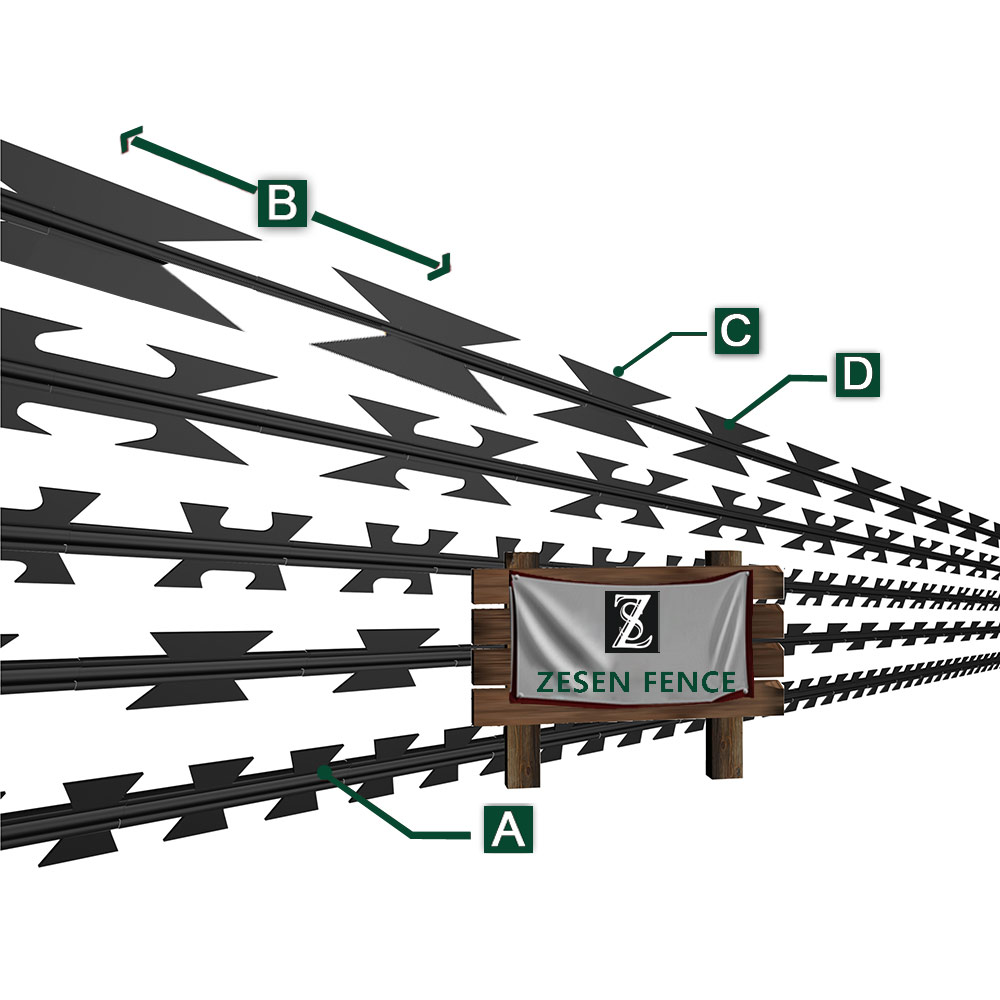

A Outside Diameter: 450mm / 500mm / 550mm / 600mm / 650mm / 700mm /750mm / 800mm / 900mm / 950mm / 1000mm



BLength: 8m ~ 15m



C Blade Thickness : 0.32mm ~ 0.6mm



DBlade Type: BTO-10 / BTO-12 / BTO-22 / CBT-25 / BTO-30 / CBT-60 / CBT-65



ESURFACE: Pre Hot Dipped Galvanized (100g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)



Concertina Razor Wire

NOTES:

1、Outside Diameter: the diameter of the concertina razor wire.

2、Extension Length: the covering length of the concertina razor wire when we set it up.

3、Core Wire Thickness: the diameter of concertina razor wire core wire.

4、Blade Thickness: the thickness of concertina razor wire blade.

5、Blade Type: blade type of the concertina razor wire.

6、Pre Hot Dipped Galvanized: the surface of concertina razor wire material is already been galvanized before we start the production.

7、Electric Galvanized + Powder Coated: galvanized concertina razor wire be coated by polyester powder.
