Steel Picket Fence

Steel picket fence also called picket fence or welded picket. First designed from United States. There are three main parts to form the steel picket fence. First, vertical steel picket with a punched spike on the top. Second, normally use square tube to be the horizontal rail of picket fence. Third part is the post, need a square tube to form the post of steel picket fence, the specs of the post must stronger than the horizontal rail. The production ability of steel picket fence is small because there is not any automatic machine for welding the steel picket on the horizontal rail. All the production process is man-made and that is why the price of steel picket fence is higher than normal fence. Vertical steel picket is welded on the rail to form a panel, then use C shape clamp to connect the panel to the post. Steel picket fence is wildly used in parking area, residential zone and other area in the city. Comparing with other kind of metal fence, steel picket fence looks more gentle. United State and Australia are the main market of steel picket fence. If you need more information or need a steel picket fence supplier to help you start business in your local market, please contact our sales department.

Steel Picket Fence

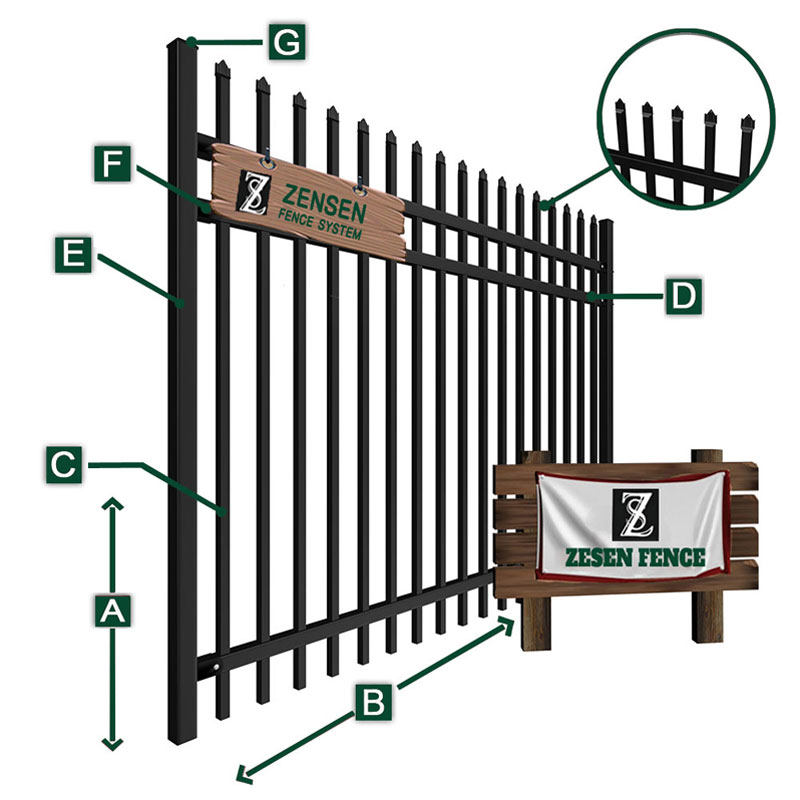

A HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

BWIDTH: 2000mm / 2500mm / 3000mm

CPICKET SIZE: 20mm*20mm / 25mm*25mm / 30mm*30mm

DHORIZONTAL RAIL: 40mm*40mm / 50mm*50mm / 60mm*60mm

EPOST SIZE: 50mm*50mm / 60mm*60mm / 75mm*75mm(Square Post)

F CLAMP: Metal Clamp

GPOST CAP: Metal Cap / Anti-UV PP Plastic Cap

HSURFACE: Hot Dipped Galvanized (505g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)

NOTES:

1、Height: the height of the steel picket fence.

2、Width: the distance between two posts, measure from center to center.

3、Picket Size: the size of the vertical picket of the steel picket fence, normally the size is 20mm*20mm / 25mm*25mm / 30mm*30mm.

4、Horizontal Rail: the rain to connect the vertical picket with the post by clamps.

5、Metal Clamp: a metal clamp with a “C” shape.

6、Hot Dipped Galvanized: dip the fence in to a container that is full of liquid zinc, to prevent the steel picket fence from getting rusty.

7、Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the steel picket fence from getting rusty.
