Temporary Fence Panels

Temporary Fence, also known as portable fence, mobile fence, mobile security fence. Temporary fence panels from the production process point of view can be divided into two types: welded mesh temporary fence panels and woven mesh temporary fence panels. The first one is more popular and common. Temporary fence panels are used for temporary isolation purposes. The temporary enclosure of the temporary fence panels is of great flexibility. Temporary fence are designed to have detachable components which includes temporary fence panels and base feet. These components are connected and detached easily so it’s good for portability, installation and transportation. The temporary fence is strong and quite good looking, and can be customized according to customers’ needs. In most countries temporary mesh fences are mainly used for important meetings, festivals, sporting events, construction sites, etc. Temporary fence panels have a simple mesh structure, it’s beautiful and practical; easy to transport and the installation is not limited by different sites such as mountain, slope, curved Strip. The fence panels are cheaper than traditional temporary barriers. The panels are processed by electric galvanizing and powder coating. With such treatment, the panels will last for at least one decades without any maintenance. Better surface treatment is hot-dip galvanizing which has a service life of a lifetime.

Temporary Fence Panels

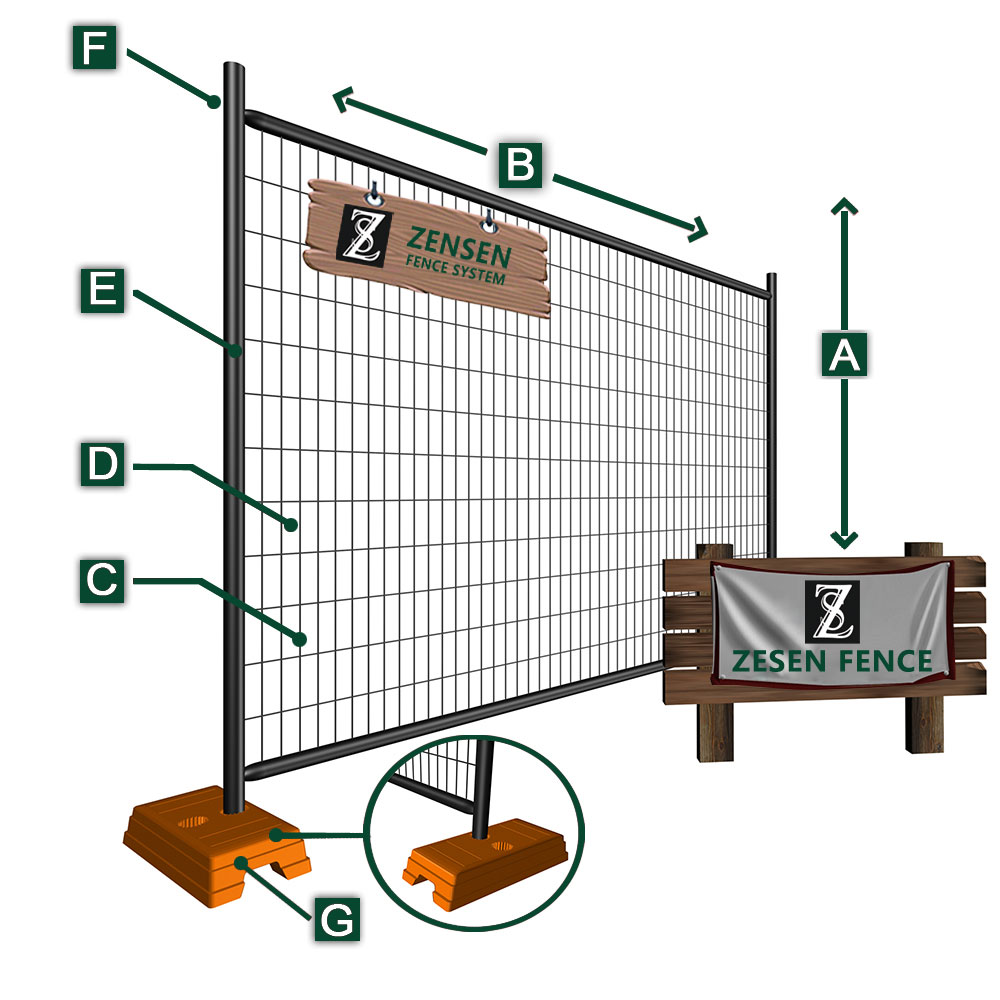

AHEIGHT: 1500mm / 1800mm / 2000mm / 2200mm / 2400mm

BWIDTH: 2000mm / 2500mm / 3000mm

CWIRE THICKNESS: 3.0mm / 3.5mm / 4.0mm / 5.0mm

DMESH SIZE: 100m*50mm / 150mm*50mm / 200mm*50mm

EFRAME DIAMETER: 32mm / 38mm / 42mm

FCLAMP: Metal Clamp

G BASE FOOT: Anti-UV PP Plastic Base Foot / Metal Base Foot

H SURFACE: Hot Dipped Galvanized (505g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)

NOTES:

1、Height: the height of the temporary fence panels.

2、Width: the horizontal distance of temporary fence panels, measure from center to center of the vertical frame pipes on both sides.

3、Wire Thickness: diameter of the wire in inside panel.

4、Frame Diameter: outside-diameter of the frame of temporary fence panel.

5、Clamp: special metal clamp only for temporary fence panels, with two wings expend out for connection.

6、Anti-UV PP Plastic Base Foot: fill the anti-UV plastic PP liquid material to a mould, to form the base foot.

7、Metal Base Foot: normally welded by steel flat bar.

8、Hot Dipped Galvanized: dip the fence in to a container which is full of liquid zinc, to prevent the temporary fence panels from getting rusty.

9、Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the temporary fence panels from getting rusty.
