Airport Fence

Airport Fence is also known as “Y-Shape security fence”. It is strengthened by the v-shaped support arm and welded mesh, security fittings and hot-dip galvanized concertina razor wire to form a high level of strength and security. Airport Fence is widely used in airports, military bases and other high security sites. On top of the airport fence is concertina razor wire which acts as a good enhanced safety barrier. By galvanization, polyester powder coating, airport fence has very good resistance to aging. It has sun-resistant, corrosion-resistant characteristics. Airport Fence is good looking in appearance. It can have various colors and it’s not only a fencing application but a perimeter decoration. Due to its high safety, good anti-climbing ability, mesh connections using special SBS tight fastener, it effectively prevent cases of human destructive disassembly. The four horizontal bend makes the mesh strength increased significantly. Airport Fence has a wide range of application scenarios like airports, roads, railways and bridges on either side of the isolation area, ports, docks, parks, lawns, municipal construction, zoo, hotels, supermarkets, entertainment, etc. Airport fence at the airport plays an important role in the airport construction. Airport fence is mainly used for the security and performance of the airport.

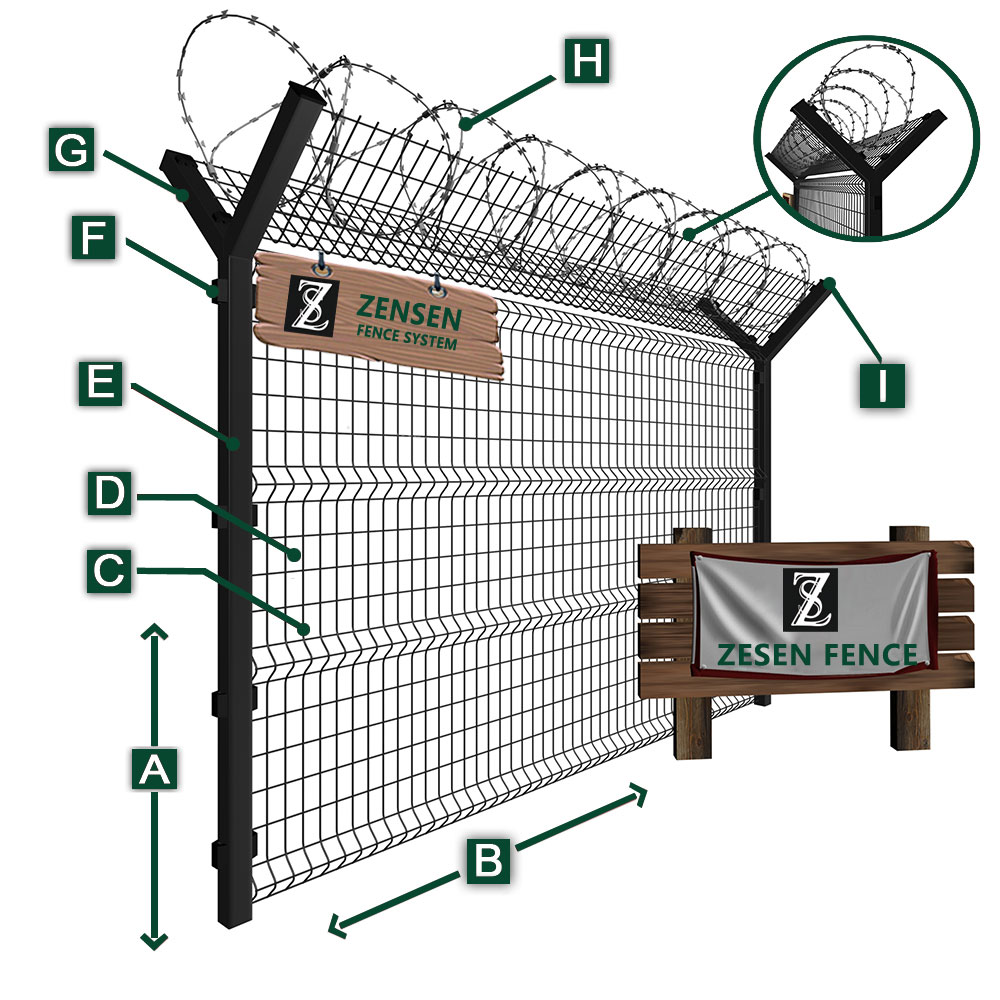

Airport Fence

AHEIGHT: 2400mm / 2700mm / 3000mm

BWIDTH: 2500mm

CWIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm

DMESH SIZE: 100mm*50mm / 150mm*50mm / 200mm*50mm

EPOST: Square Post (60mm*60mm)

FCLAMP: Anti-UV Plastic Clamp / Metal Clamp

GV-ARM: 500mm*500mm

HRAZOR WIRE: Dia 500mm BTO-22

I POST CAP: Metal Cap / Anti-UV Plastic Cap

SSURFACE: Hot Dipped Galvanized (505g/m²) Electric Galvanized + Polyester Powder Coated (All colors in Ral)

NOTES:

1、Height: the height of the airport fence, measure from ground to the top point of razor wire.

2、Width: the horizontal distance of airport fence, measure from center to center of the square post.

3、Wire Thickness: diameter of the low carbon steel wire of airport fence panel.

4、Mesh Size: the horizontal and vertical length of airport fence panel mesh.

5、Y Shape Post: a V shape post welded on the main post, for setting up the V panel and razor wire on top.

6、Clamp: special anti-UV plastic clamp for setting up the airport fence panel and post.

7、Hot Dipped Galvanized: dip the airport fence fence in to a container which is full of liquid zinc, to prevent the airport fence panels from getting rusty.

8、Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the airport fence panels from getting rusty.
